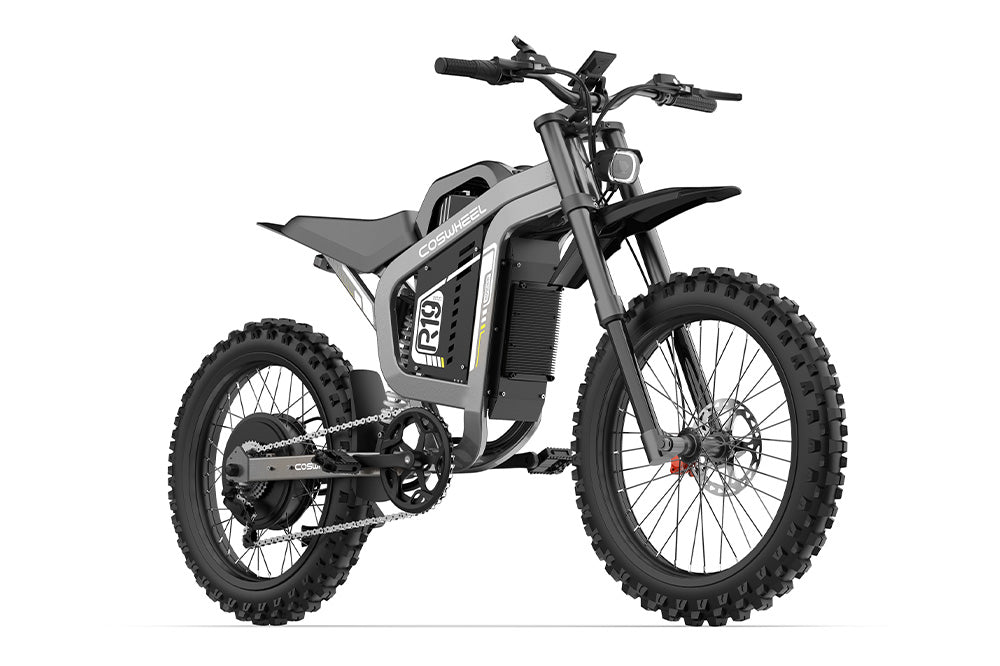

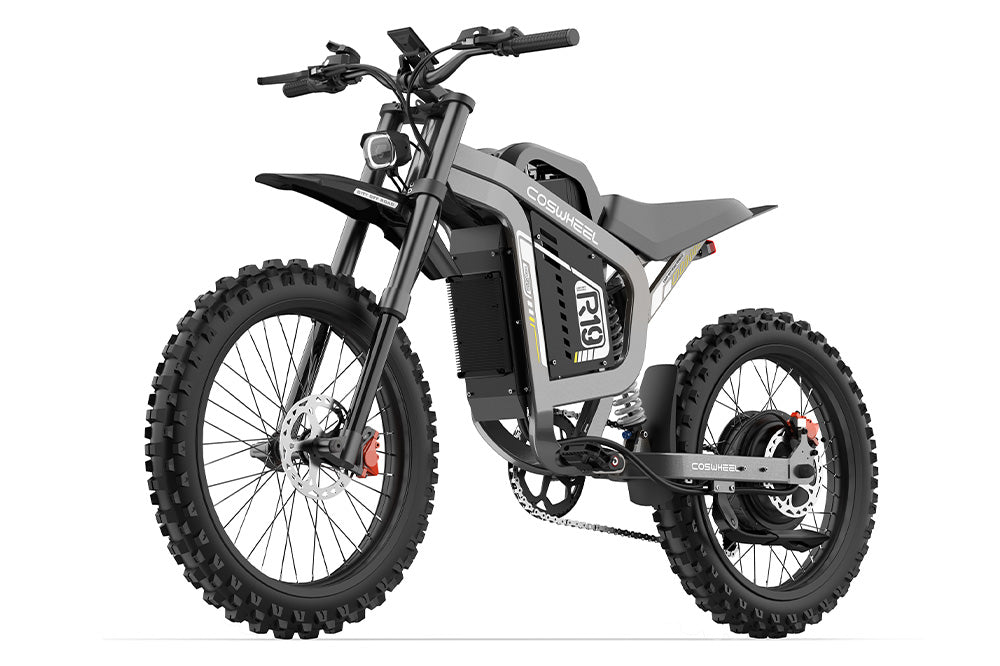

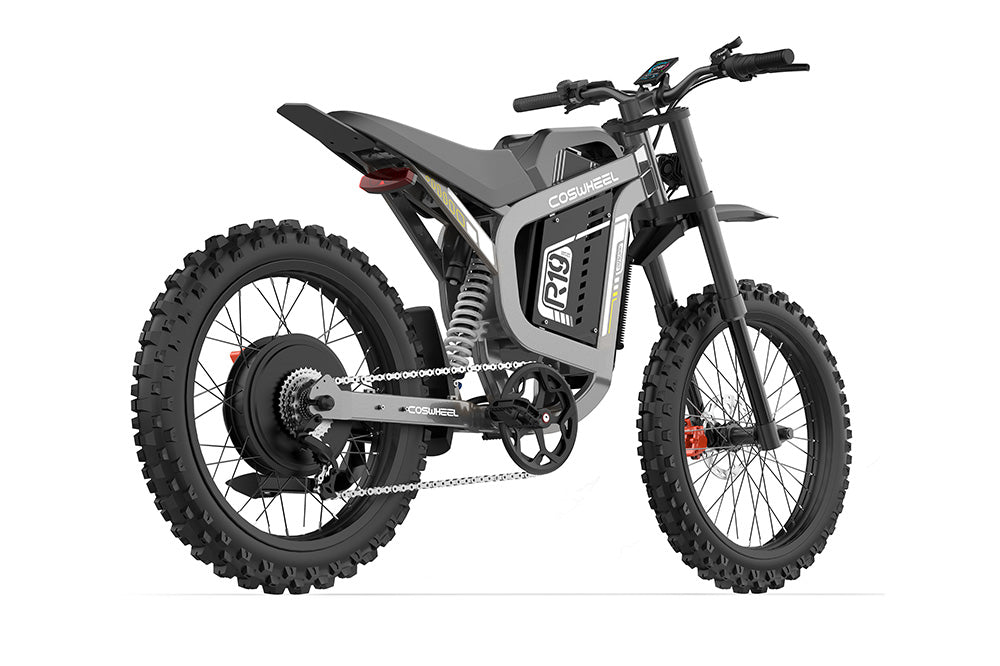

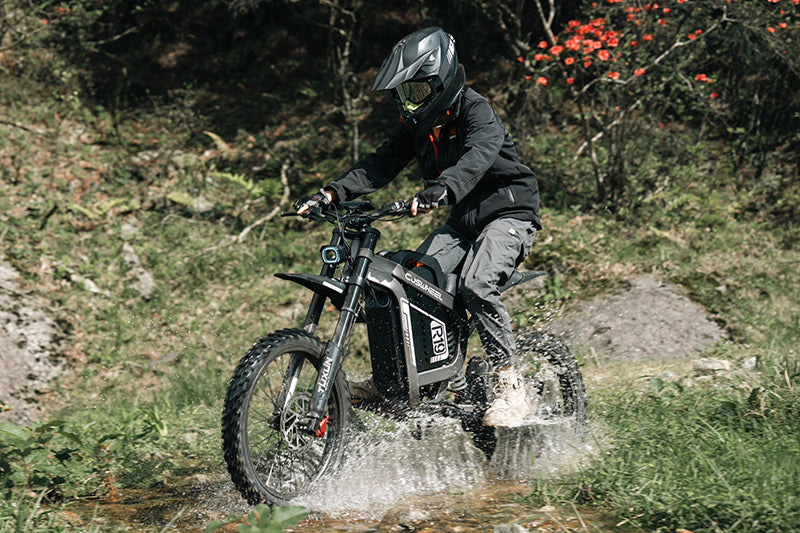

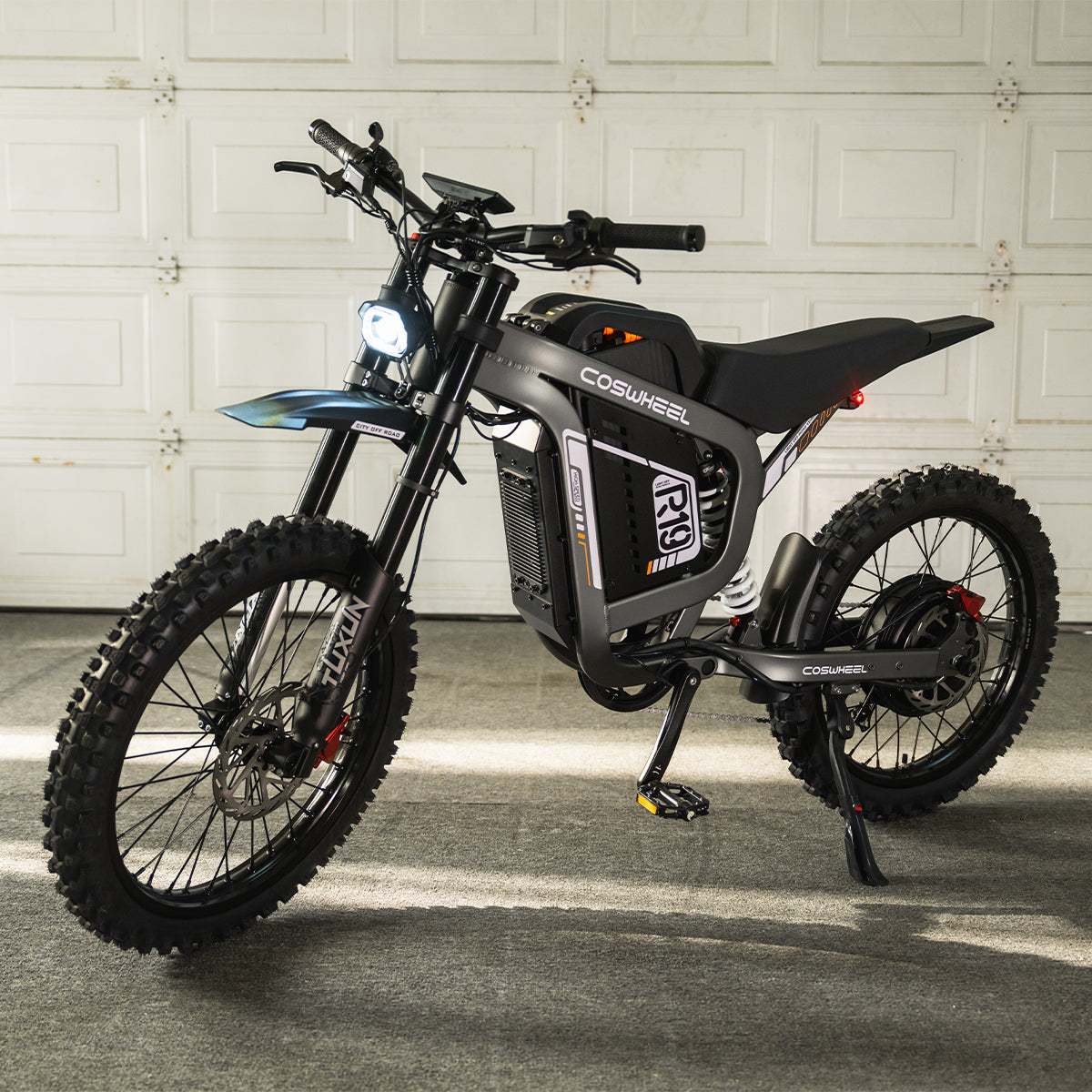

R19 Electric Dirt Motorcycle

• Top Speed: Class 2/3, 50 Mph (80Km/h)
• Range: 75+miles (120km) in Class-2 throttle-only mode (pure electricity); 124miles (200km) in Class-1 PAS (pedal assist)
• Motor: 72V Peak 6000W (Rated 3000W) Brushless Rear Hub Motor 120Nm

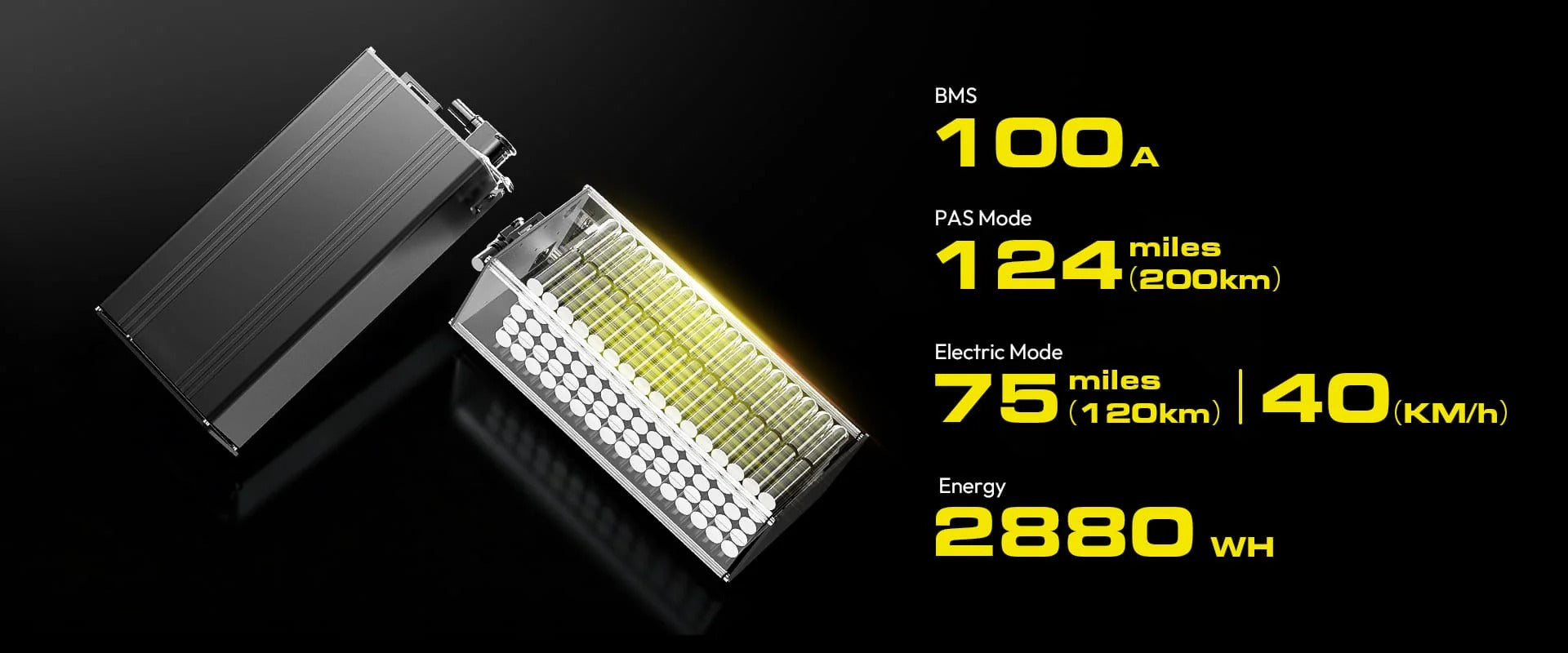

• Battery: 72V 40Ah Lithium Battery
• Energy: 2880Wh
• Front Suspension: Inverted hydraulic shock absorber with adjustable damping, 200mm Travel
• Rear Suspension: Adjustable Damping, 300mm Travel

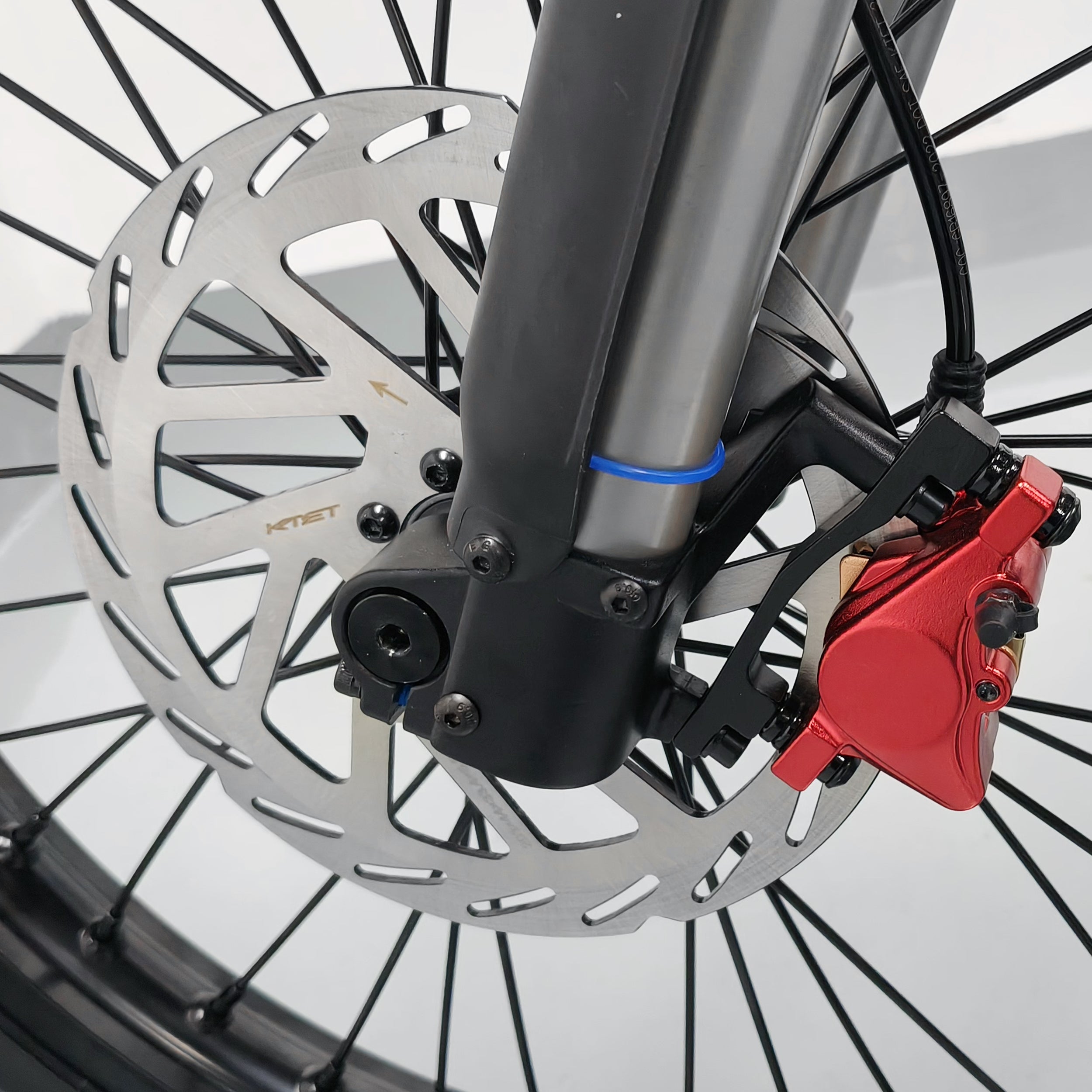

• Front Brakes: Double piston hydraulic oil brake, Equipped with 220mm*2.8 brake disc
• Rear Brakes: Double piston hydraulic oil brake, Equipped with 180mm*2.8 brake disc
• Front Tires: 70/100-19 professional off-road tire

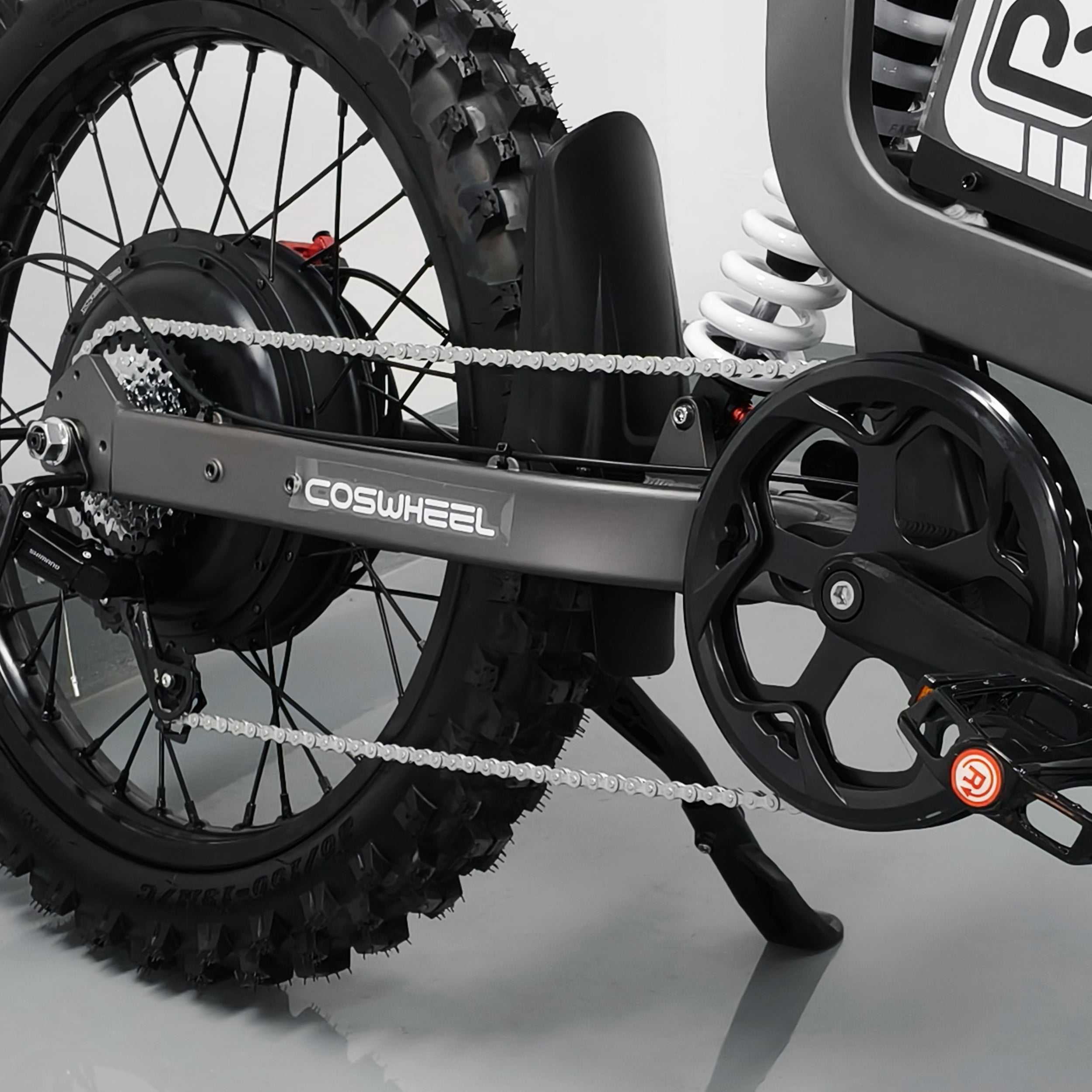

• Rear Tires: 80/100-19 professional off-road tire
• Throttle: Grip Twist Throttle

• Charger: 84V6A Charger
• Charging Time: 6.0-7.0 Hours

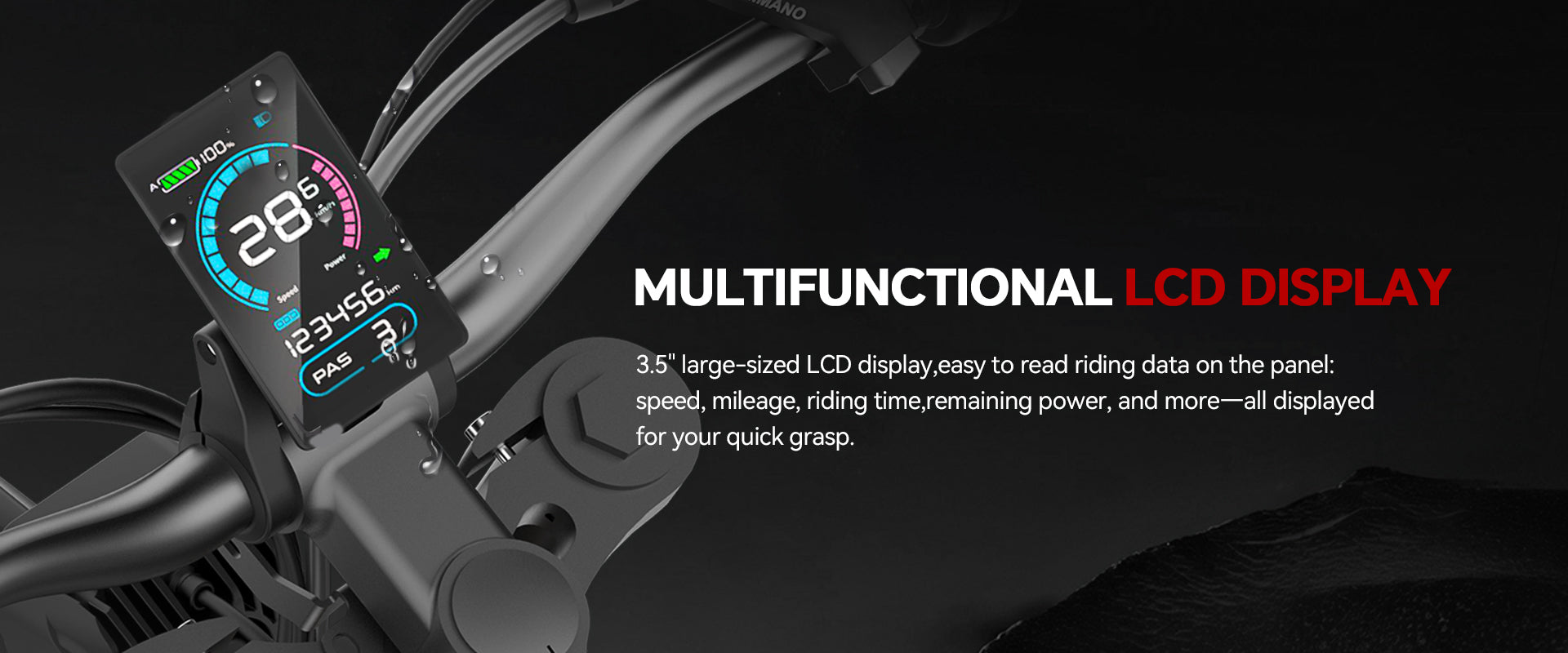

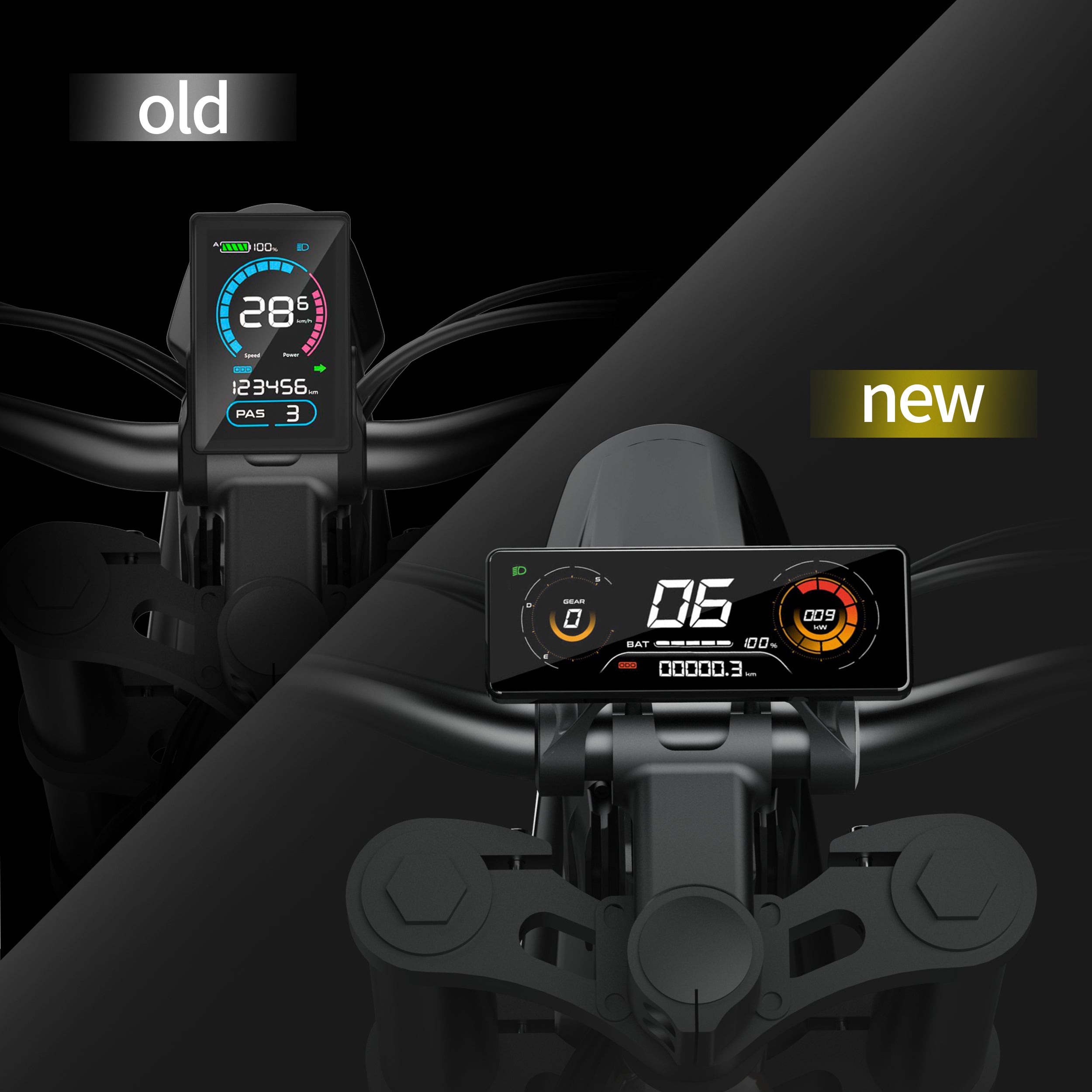

• Display: 3.5" LCD high-brightness color screen
• Controller: 72V 80A
• Front Light: 12V Headlight
• Rear Light: LED
• Pedal Assist: 3 Levels
• Unlock Method: NFC Card
• Sensors: Speed Sensor

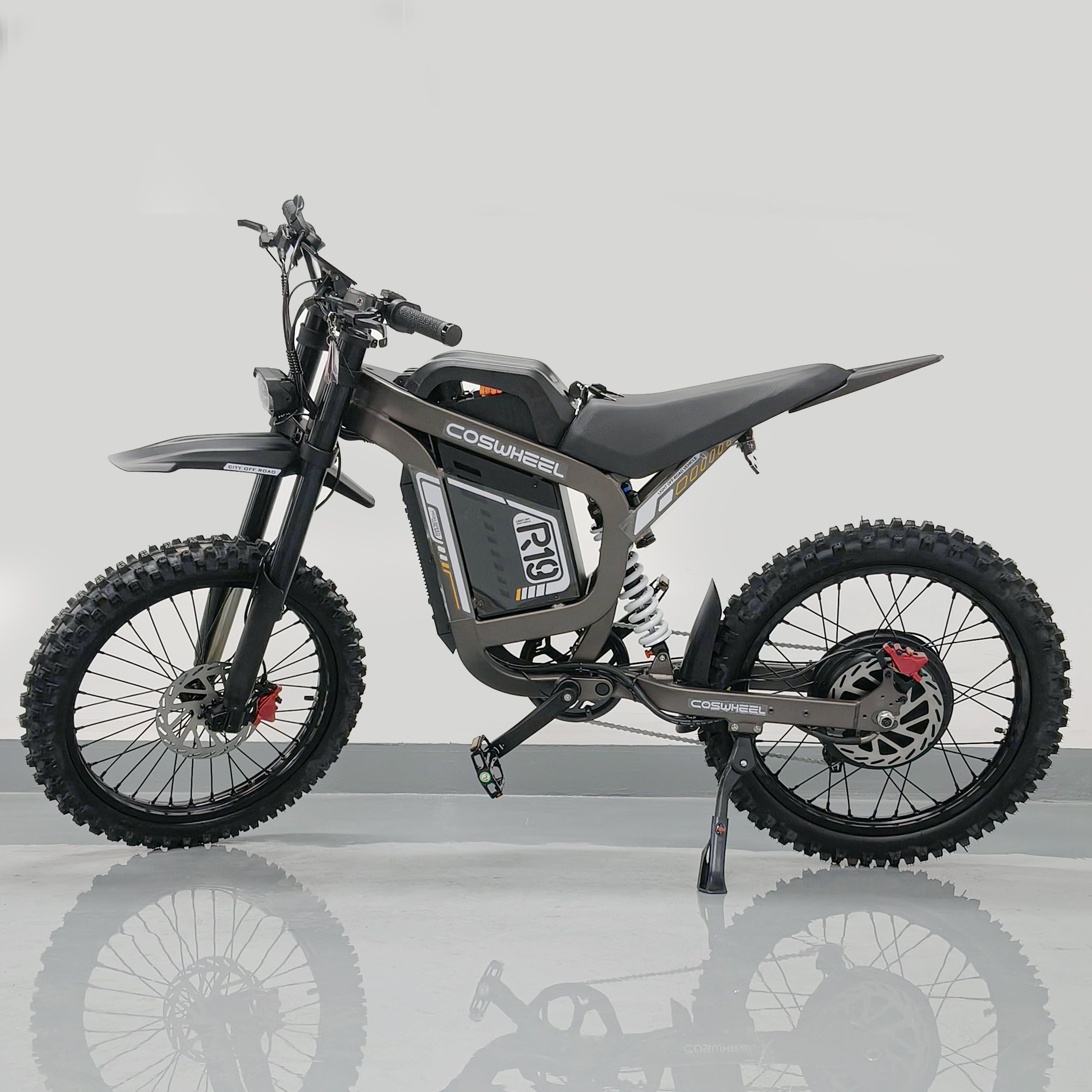

• Frame: Hydroformed Triple-Butted 6061-T6 Aluminium Alloy
• Pedal: Aluminum Alloy Pedal, with Reflect-light, Axis 9/16 x2
• Crank: 1/2 "*3/32"*46T 7-speed ED Tooth Plate
• Rear Derailleur: Shimano 7-Speed
• Chain: 7-speed Anti-rust, 1/2" * 3/32"
• Handlebars: Split Handlebar, φ32 φ22 Sand Black

• Suitable Height: 5'1" - 6'5"
• Seat Height: 32.6" (83cm)
• Bike Height: 41.7" (106cm)
• Wheelbase: 47.8" (121.5cm)
• Handlebar Width: 27.2" (69cm)
• Bike Weight: ≥99lbs (with Battery) (≥45kg)
• Maximum Load: 440lbs (200kg)
• Safe Load: 330lbs (150kg)
• Overall Size: 74.8" * 27.6" *43" (190*70*109cm)

Keeping your riding speed at 25mph (40km/h) is more battery-friendly and helps extend range.

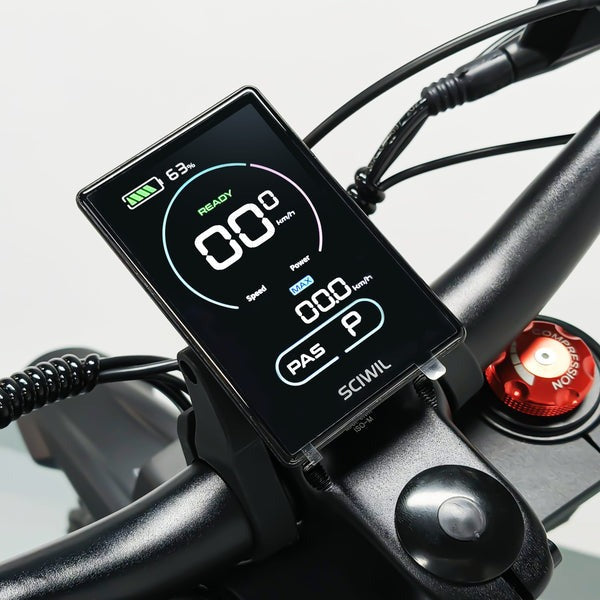

Place the NFC card that comes with the R19 below the 3.5" color display (the sensor is slightly below the display) to unlock the off-road electric bike.

It should be noted that when the bike is just unlocked or the bike has been stationary for 3 seconds, the R19 will enter the neutral setting and display the "P" gear position, and the bike will not start when the throttle is twisted.

You need to hold the brake handle tightly to resume the throttle.

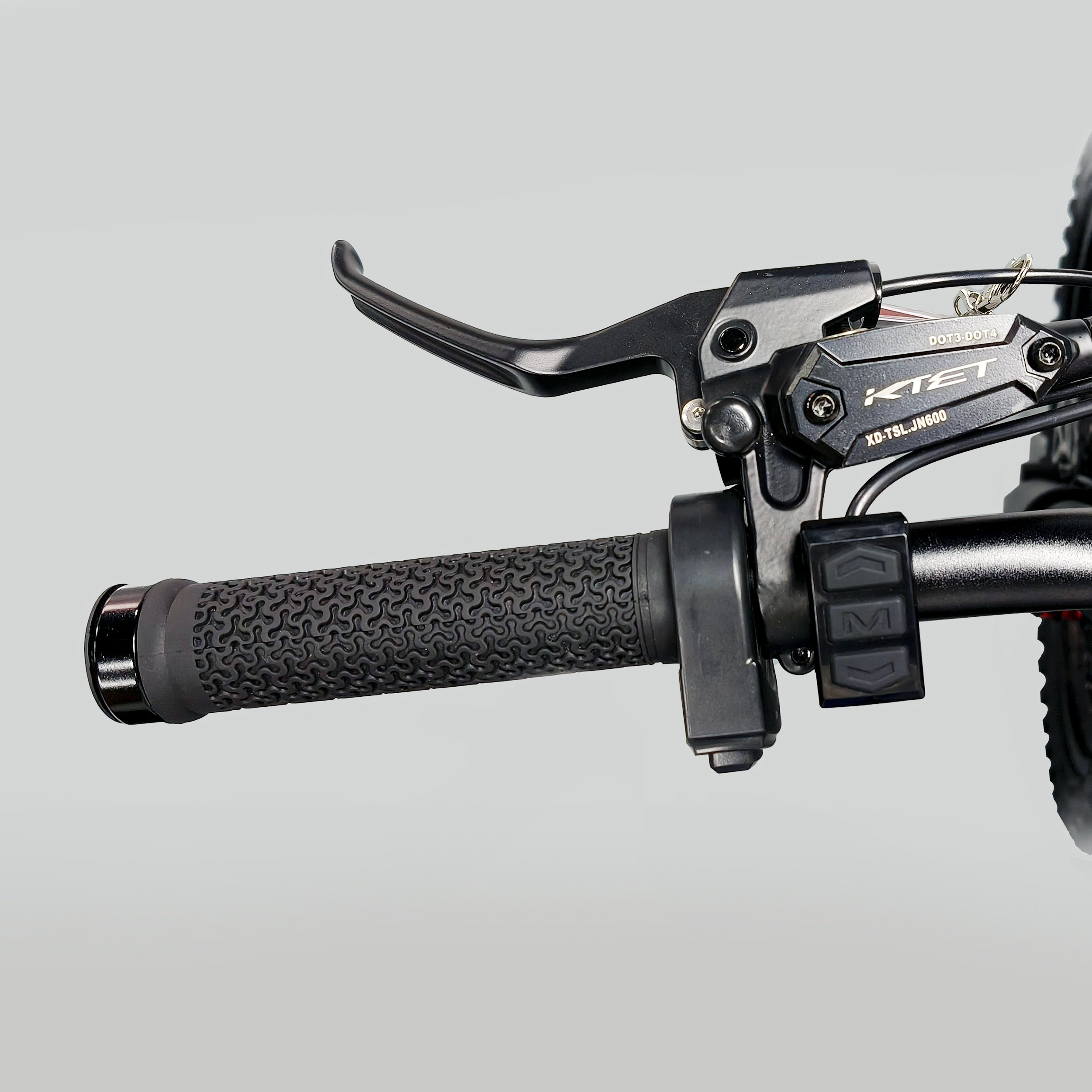

After unlocking the R19 by placing the NFC card on the display, the throttle speed can be switched by increasing or decreasing the gear on the left handle.

There are 3 gears to switch, and the maximum speed can reach 50mph (80km/h) in gear 3.

After pressing and holding the top button for a few seconds, when the display shows "25km/h", it means that the R19 speed limit is 15mph (25km/h).

After pressing and holding the top button again, when the display shows "99km/h", it means that the R19 speed limit is lifted and restored to 50mph (80km/h). Press the middle "M" button to switch the function of the display.

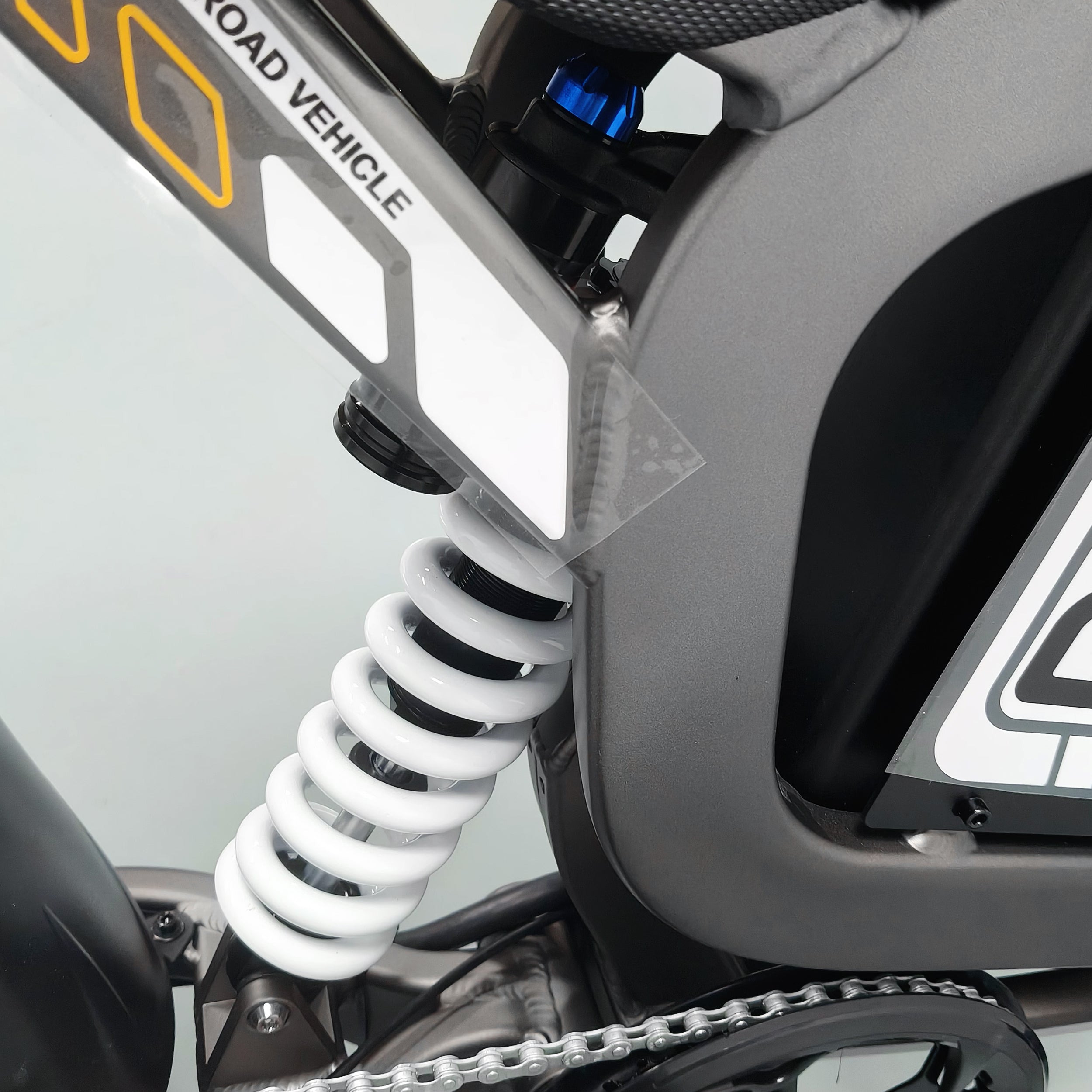

The R19 is equipped with fully adjustable front and rear suspension to match your riding needs. The rear suspension features a 300mm adjustable damping shock absorber — use the blue knob on top to fine-tune the downward damping (compression) and the red knob on the bottom to set the upward damping (rebound).

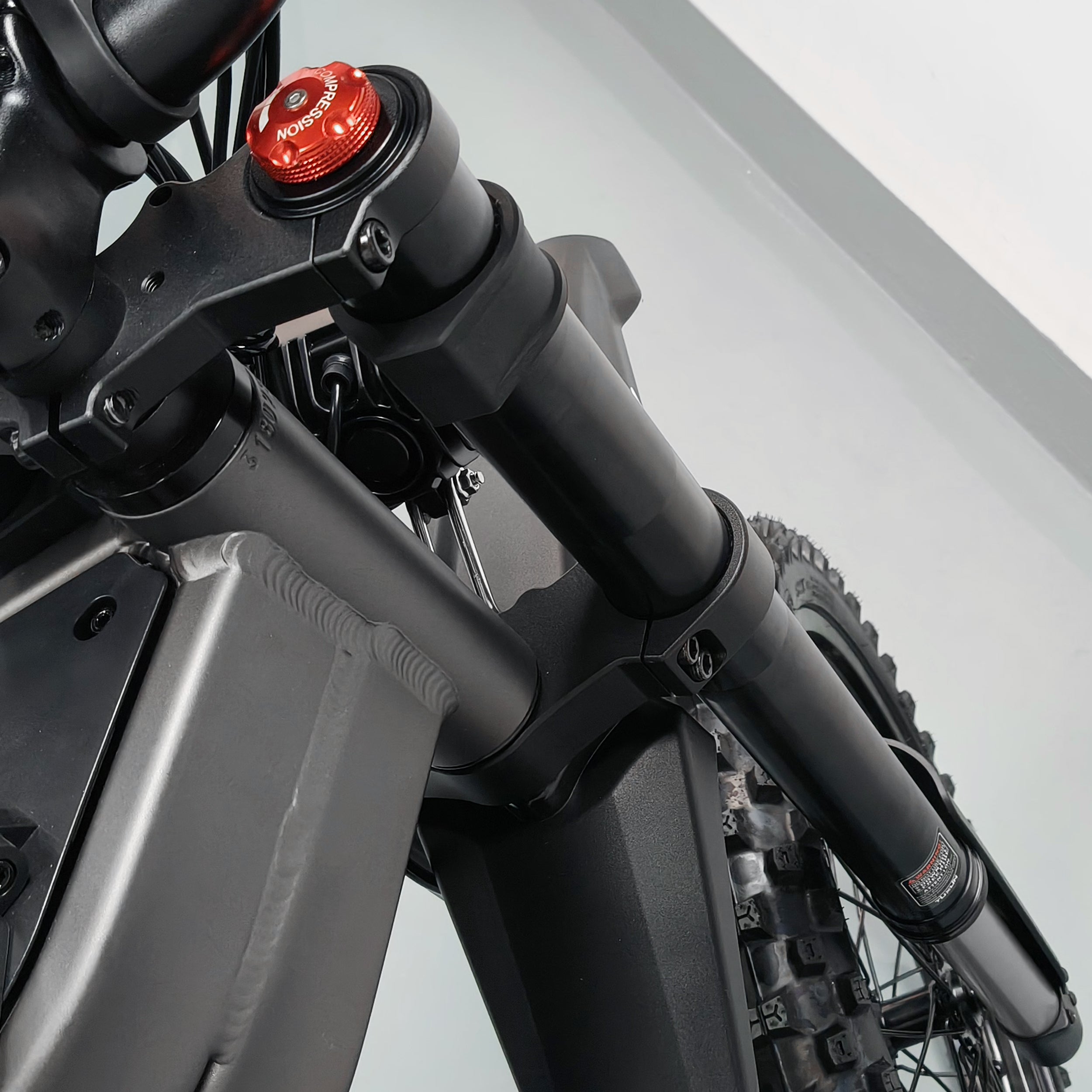

The front suspension comes with an inverted hydraulic fork offering 200mm of travel. Simply rotate the red knob on the right fork to adjust the oil pressure, which controls rebound speed. This allows you to set the suspension softer for comfort on rough terrain, or stiffer for stability at high speeds.

Yes. The R19 Electric Dirt Motorcycle has passed multiple international safety and compliance tests:

• UL 2849 Test Report – Ensures the safety of the electrical drive system.

• GCC Certification & Test Report – Confirms compliance with Gulf region regulations.

• EU EN15194 & CE Certification and Test Report – Verifies conformity with European e-bike standards.


These certifications guarantee that the R19 meets strict global requirements for performance, reliability, and rider safety. ✅

The VIN number (serial number) of each R19 is located in the middle of the front fork. Please note that the VIN of the R19 is unique and cannot be duplicated, ensuring every bike can be individually identified.

Each R19 package comes with everything you need to get started:

• 1 × R19 Ebike

• 2 × Fenders

• 1 × Charger

• 1 × Tool Bag


This ensures you’re ready to ride right out of the box!
