Specification

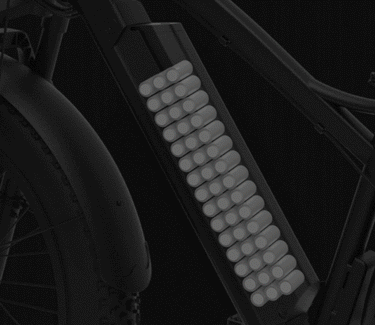

• Battery
  48V 20AH High-tech Battery
• Motor
  750W High Speed Brushless Geared Motor
• Bike Frame
  2" * 18" AL6061 M Mode
• Display
  KDS-KD51C,USB LCD Display, Battery level, Speed,Distance Traveled, etc.
• Charger
  US Standard 3.0A Smart Charger
• Rear Cassette
  Shimano 7 Gears
• Pedal Assist Intelligent
  5 Level Pedal Assist
• Tires
  26"x 4"
• Charging Time
  4~6 Hours
• Product Weight
  72 lbs
• Total Payload Capacity
  400 lbs
• Recommended Rider Heights
  5.9" ~ 6.8"

Components

• Pedal
  Alloy pedal with reflectors
• Bike Frame
  6061 Aluminum frame
• Headlight
  48V LED light
• Handlebars
  Premium ergonomic

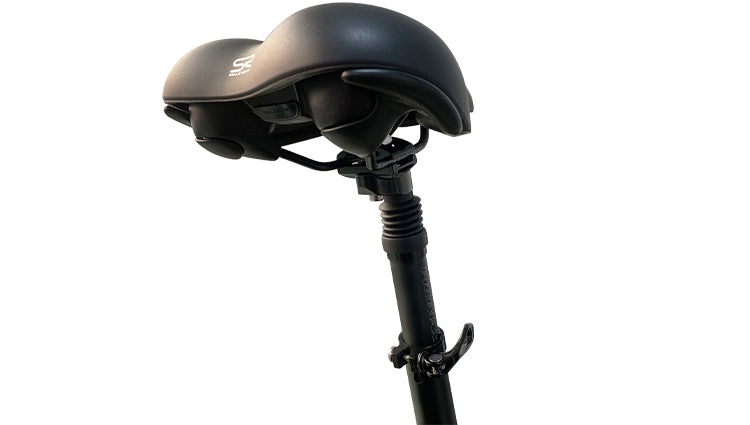

• Saddle
  Soft saddle
• Kickstand
  Heavy duty aluminum
• Seat post
  Diameter 30.4mm length 300mm
• Spokes
  Steel ED
• Brake Lever
  Alu alloy comfort grip levers with motor cutoff switch
• Chain
  KMC chain
• Freewheel
  Shimano 7 speed gear shift system
• Brake
  Hydraulic Disc Brake
• Stem
  Promax MA-570 adjustable angle 35° - 145° and 108mm extension stem.
• Crank
  170mm Forged Alloy
• Gearing
  Shimano- 14-28T BROWN/BK
• Front Fork
  Alloy front suspension fork with lockout and adjustment
• Throttle
  Half twist throttle

Geometry

• A :
  Total Length 75"
• B :
  Wheelbase 45"
• C :
  Wheel Diameter 28"
• D :
  Chain Stay Length 19"
• E :
  Top Tube Length 22.5"
• F :
  Handlebar Height 46.5"
• G :
  Head Tube Length 5.9"
• H :
  Handlebar Length 26"
• I :
  Standover Height 31"
• J :
  Maximum Seat Height 36.5"
• K :
  Handlebar Length 33"
• L :
  Minimum Height to Ground 38"
